130SV200-48V-30EA2

130SV200-48V-30EA2

Size 130 mm  |  Length (L) 193 mm  |  Nominal Voltage 48 VDC   |  Rated Torque 9.55 Nm  |  Rated Speed 2000 rpm  |  Brake 24VDC - 16Nm

Produktcode: 130SV200-48V-30EA2

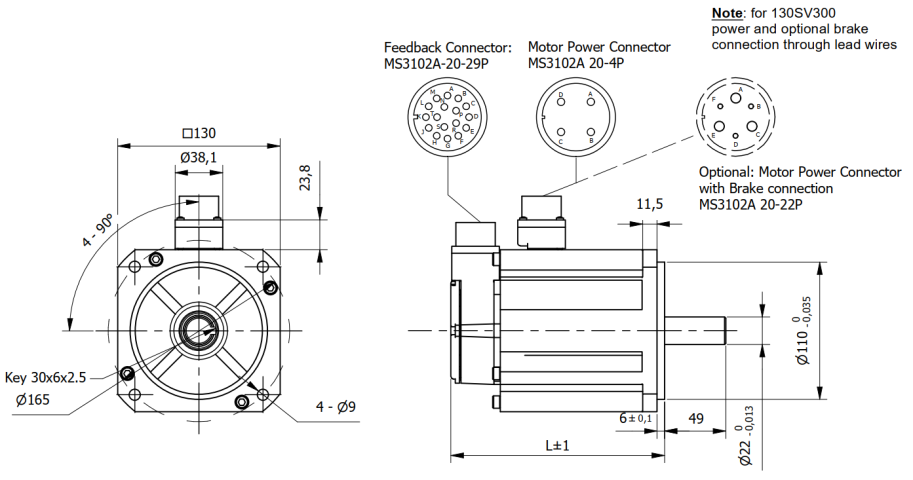

Technische Daten Download Maße Kombinationen
Size130 mmLength (L)193 mm
Nominal Voltage48 VDC Rated Torque9.55 Nm
Rated Speed2000 rpmn° of Pole10
n° of Phase3 Rated Power2000 Watt
No-Load Speed3000±10% rpmMax. Peak Torque28.65 Nm
Torque Constant0.2 Nm/ARated Current52.9 A
Max. Peak Current158.7 ANo-Load Current<6 A
Back EMF constant12 V/kRPMLine to Line Resistance0.025±10% Ohm
Line to Line Inductance0.14±20% mHRotor Inertia15.2 Kgcm2
Brake24VDC - 16Nm Weight10 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.12mm (max.4N) mm
Max. Radial Force (30mm from flange)490 NMax. Axial Force196 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
