130SV300-48V-30EA1

130SV300-48V-30EA1

Size 130 mm  |  Length (L) 193 mm  |  Nominal Voltage 48 VDC   |  Rated Torque 14.3 Nm  |  Rated Speed 2000 rpm

Produktcode: 130SV300-48V-30EA1

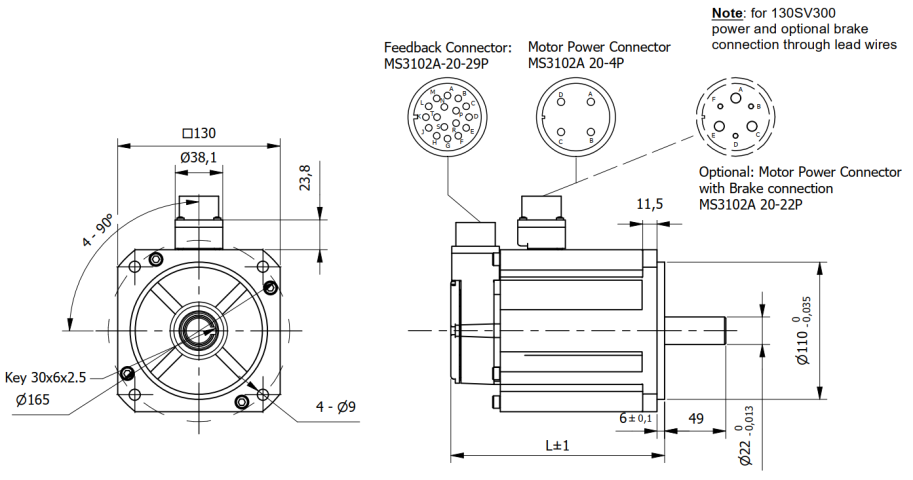

Technische Daten Download Maße Kombinationen
Size130 mmLength (L)193 mm
Nominal Voltage48 VDC Rated Torque14.3 Nm
Rated Speed2000 rpmn° of Pole10
n° of Phase3 Rated Power3000 Watt
No-Load Speed3000±10% rpmMax. Peak Torque42.9 Nm
Torque Constant0.2 Nm/ARated Current79.3 A
Max. Peak Current237.9 ANo-Load Current<8 A
Back EMF constant12 V/kRPMLine to Line Resistance0.016±10% Ohm
Line to Line Inductance0.1±20% mHRotor Inertia19.9 Kgcm2
Weight12.7 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.12mm (max.4N) mmMax. Radial Force (30mm from flange)490 N
Max. Axial Force196 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
