60SV-48VDC

Home   Produkte   >   Servomotoren   >   Niederspannungs-Servomotoren   >   60SV-48VDC
60SV20-48V-30EA1

60SV20-48V-30EA1

Produktcode: 60SV20-48V-30EA1

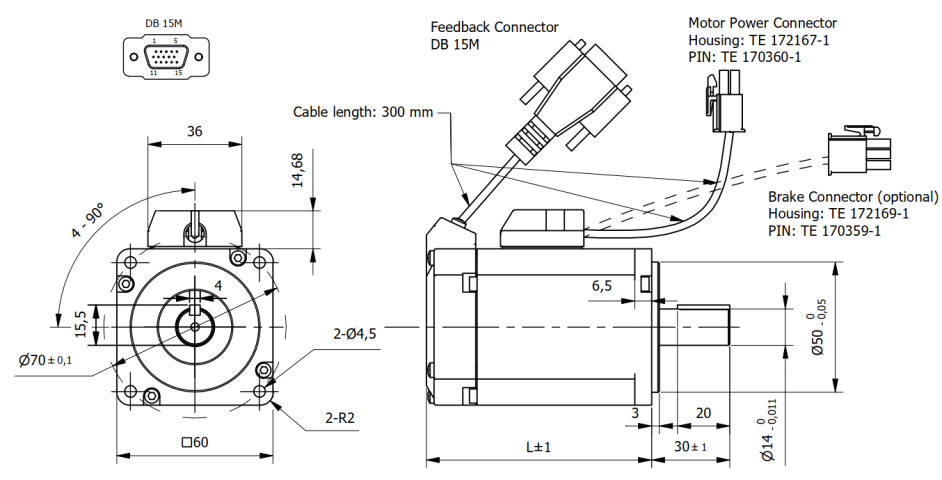

Technische Daten Download Maße Kombinationen
Size60 mmLength (L)86.5 mm
Nominal Voltage48 VDC Rated Torque0.64 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power200 Watt
No-Load Speed5200±10% rpmMax. Peak Torque1.92 Nm
Torque Constant0.107 Nm/ARated Current6 A
Max. Peak Current18 ANo-Load Current0.6 A
Back EMF constant6.5 V/kRPMLine to Line Resistance0.38±10% Ohm
Line to Line Inductance0.68±20% mHRotor Inertia0.15 Kgcm2
Weight0.95 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.14mm (max.4N) mmMax. Radial Force (20mm from flange)245 N
Max. Axial Force98 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
