60SV20-48V-30EA2

60SV20-48V-30EA2

Size 60 mm  |  Length (L) 123 mm  |  Nominal Voltage 48 VDC   |  Rated Torque 0.64 Nm  |  Rated Speed 3000 rpm  |  Brake 24VDC - 1.5Nm

Produktcode: 60SV20-48V-30EA2

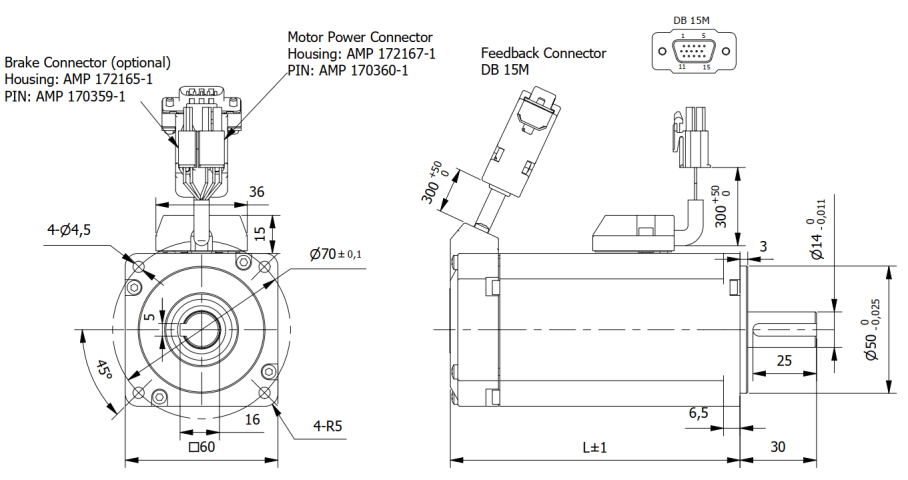

Technische Daten Download Maße Kombinationen
Size60 mmLength (L)123 mm
Nominal Voltage48 VDC Rated Torque0.64 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power200 Watt
No-Load Speed5200±10% rpmMax. Peak Torque1.92 Nm
Torque Constant0.107 Nm/ARated Current6 A
Max. Peak Current18 ANo-Load Current0.6 A
Back EMF constant6.5 V/kRPMLine to Line Resistance0.38±10% Ohm
Line to Line Inductance0.68±20% mHRotor Inertia0.15 Kgcm2
Brake24VDC - 1.5Nm Weight1.35 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.14mm (max.4N) mm
Max. Radial Force (20mm from flange)245 NMax. Axial Force98 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
