LEO - B860O54 R000-S402 Leo B860 | Delta Line

Home   Produkte   >   Motor Steuerungen/Controller   >   Bürstenlose Gleichstrommotoren Steuerungen   >   Leo B860

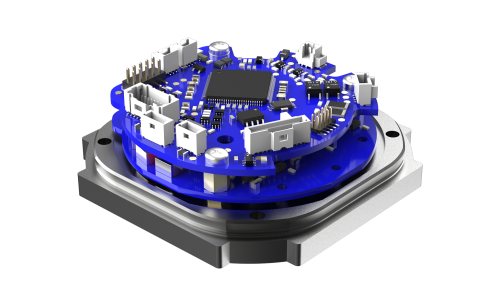

LEO - B860O54 R000-S402

LEO - B860O54 R000-S402

Interface PowerLink   |  Power Supply 12 - 60 VDC   |  Phase Current up to 18 A rms  |  Peak Current 54 (for 2s.) A peak  |  Motor Power up to 860 W

Produktcode: B860O54R000-S402

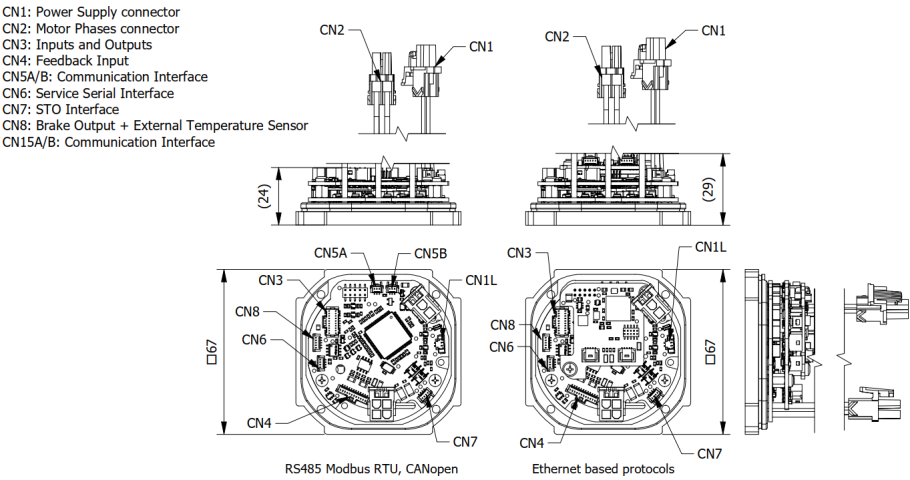

Technische Daten Download Maße Kombinationen Software Zubehör
InterfacePowerLink Power Supply12 - 60 VDC
Phase Current up to18 A rmsPeak Current54 (for 2s.) A peak
Motor Power up to860 WLogic Power Supply12 - 60 VDC (optional)
Chopper frequency40 kHzWeight125 g
Open / Closed LoopClosed Loop Operating modeProfile position/velocity/homing mode, Cyclic sync position/velocity/torque mode
Protective functionsOver current, over/under voltage, overheating, short circuit Protection ClassIP00
Safety featureSafe Torque Off (STO) SIL3/Ple Pollution degree2
Operating Temperature+5 / +40°C Humidity5 - 85%
Digital Inputs4 Digital Outputs3
Analog Inputs2 Encoder (standard)Incremental encoder (not isolated): 5V Differential (RS422) or 5V Single-Ended (TTL/CMOS)
Encoder (optional)Absolute encoder BiSS Hall effect sensors5V Single-Ended (TTL/CMOS)ensors
