60SV-220VAC

Home   Produkte   >   Servomotoren   >   Mittelspannungs-Servomotoren   >   60SV-220VAC
60SV20-220V-30EA1

60SV20-220V-30EA1

Produktcode: 60SV20-220V-30EA1

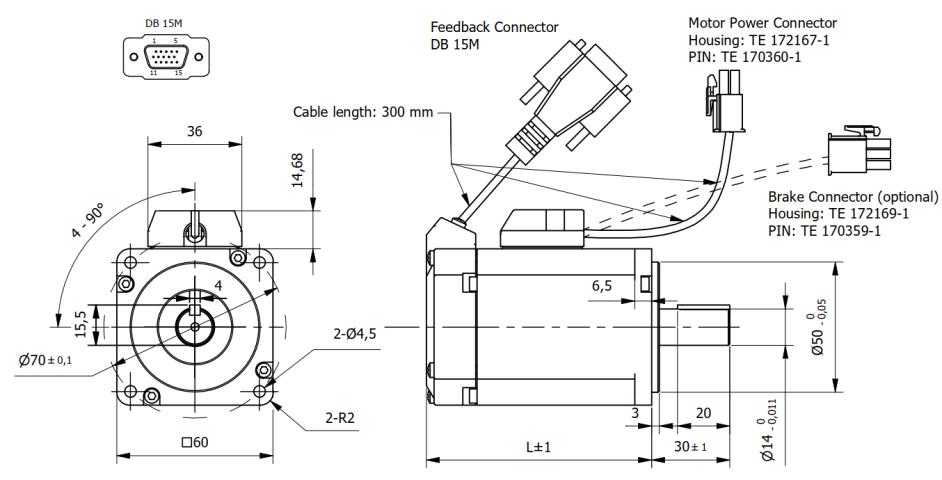

Technische Daten Download Maße Kombinationen
Size60 mmLength (L)79.5 mm
Nominal Voltage220 VAC Rated Torque0.64 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power200 Watt
No-Load Speed6400±10% rpmMax. Peak Torque1.92 Nm
Torque Constant0.53 Nm/ARated Current1 A
Max. Peak Current3.6 ANo-Load Current0.6 A
Back EMF constant32 V/kRPMLine to Line Resistance9.35±10% Ohm
Line to Line Inductance17±20% mHRotor Inertia0.15 Kgcm2
Weight0.9 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.14mm (max.4N) mmMax. Radial Force (20mm from flange)245 N
Max. Axial Force98 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
